Easy-to-load pump head

Easy-to-install type pump heads are suitable for transmission of small- and medium-flow fluids. Comp

Specifications：

YZ1513

Coding：

6.01.001

classification：

Easy-to-load Series Pump Head

图片名称

Hotline：

+86-312-6775600

  • Product description
  • Technical parameters
    • Commodity name: Easy-to-load pump head
    • Commodity ID: 1072549402464899072
    • Name: Easy-to-load pump head
    • Specifications: YZ1513
    • Coding: 6.01.001

    Easy-to-install type pump heads are suitable for transmission of small- and medium-flow fluids. Comp


    Ø Self-adaptive tube clamp structure, faster and easier to replace the hose

    Ø Leakage detection module can be installed to reduce customers’ loss.

    Ø Open-stop pump device can be installed to ensure safe operation of customers, facilitate the expansion of application.

    Ø The shell is made of high-quality PESU material, with excellent structural properties and chemical resistance

    Ø The idler wheel uses 304 stainless steel, with excellent corrosion resistance
  •
    适用壁厚1.6mm的软管。

    Ø最高转速：600rpm

    Ø滚轮数量：3

    流量参数：


    软管规格

    13#

    14#

    19#

    16#

    25#

    17#

    18#

    最大参考流量/600rpm
    38mL/min
    150mL/min
    250mL/min
    460mL/min
    960mL/min
    1600mL/min
    2200mL/min

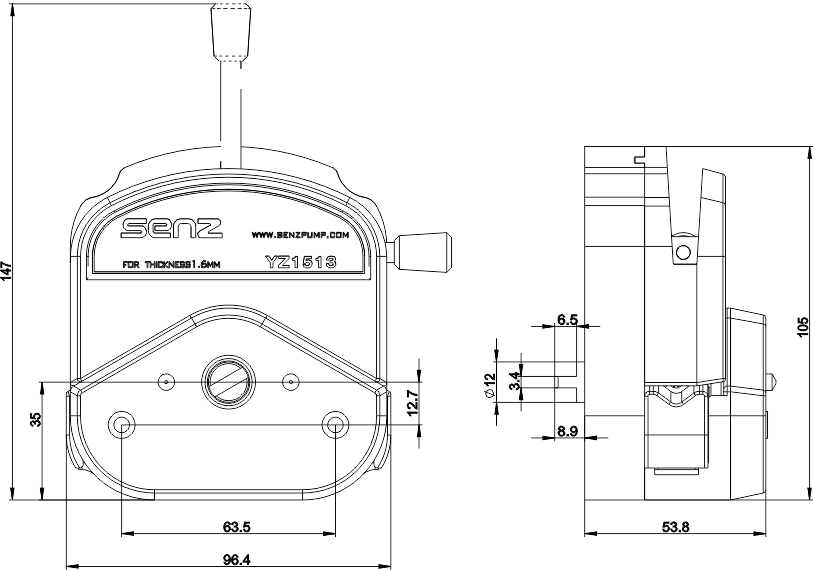

    外形尺寸：
